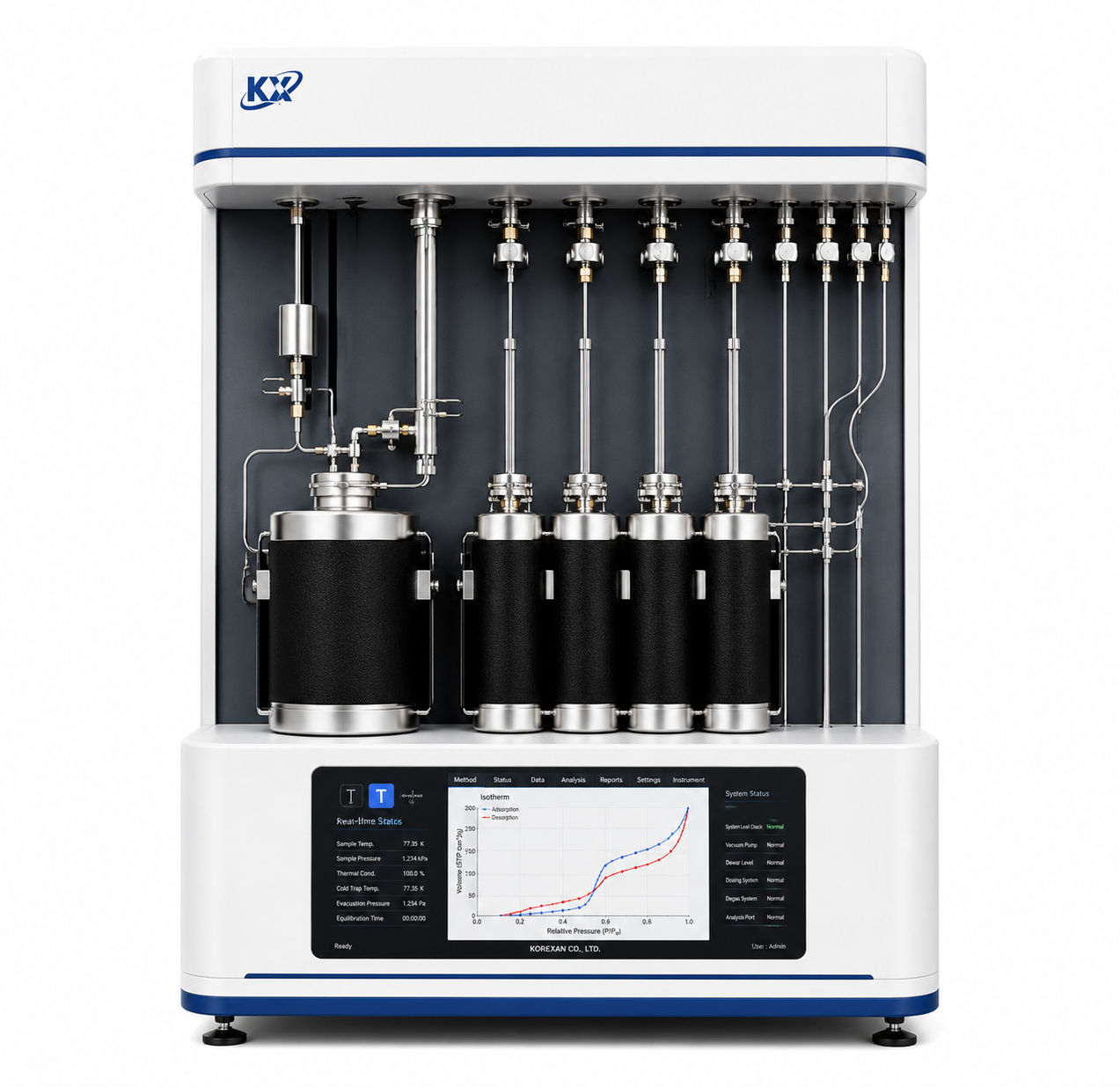

Surface Area Analyzer - BET- Korexan KSAA - 1400
Overview
Product Overview
The Korexan BET Surface Area Analyzer is a high-performance physical adsorption analysis system engineered for precise determination of specific surface area, pore size distribution, and pore volume of porous materials. Designed with advanced pressure measurement technology and intelligent automation, it delivers highly accurate, repeatable, and reliable analytical results for modern research and industrial laboratories.
Operating on the principle of gas adsorption, the system accurately characterizes micro, meso, and macroporous materials using internationally recognized BET and advanced adsorption models. Its high-precision pressure transducers, automated gas handling, and intelligent temperature control ensure exceptional measurement stability across a wide analytical range.
Designed for maximum productivity, the analyzer features independent analysis stations, automated dosing, integrated degassing capability, and expandable measurement configurations to accommodate evolving laboratory requirements. The modular architecture enables efficient high-throughput analysis while maintaining outstanding accuracy and operational reliability.
The instrument is ideally suited for characterization of catalysts, nanomaterials, activated carbon, battery materials, pharmaceuticals, metal-organic frameworks (MOFs), ceramics, zeolites, polymers, and other advanced porous materials. It serves a wide range of applications in material science, energy storage, environmental research, chemical processing, quality assurance, and academic research.
Equipped with powerful software for real-time isotherm monitoring, automated data reduction, customizable reporting, and comprehensive adsorption analysis, the system simplifies complex measurements while ensuring complete traceability and data integrity. Its intuitive interface enables efficient operation from routine quality control to advanced research investigations.
Combining precision engineering, intelligent automation, and robust analytical performance, the Korexan BET Surface Area Analyzer provides a comprehensive and scalable solution for surface area and pore characterization, delivering exceptional sensitivity, repeatability, and long-term reliability for demanding laboratory environments.
Key Features
- High-Precision BET Surface Area Measurement
- Accurate Pore Size & Pore Volume Analysis
- Dual Independent Analysis Stations
- Expandable 2 to 6 Port Configuration
- Automated Gas Handling & Smart Dosing
- Integrated Multi-Port Degassing System
- High-Accuracy Pressure Transducers
- Advanced Temperature Control System
- Real-Time Adsorption Isotherm Monitoring
- Powerful Data Analysis & Reporting Software
- Long Unattended Operation Capability
- Excellent Accuracy & Repeatability
- Wide Range of Porous Material Analysis
- Intuitive User-Friendly Software Interface
- Reliable Performance for Research & QC
- Supports BET, BJH, Langmuir & DFT Models
Specifications
| Parameter | Value |
|---|---|
| Product Model | KSAA-1400 |
| Analysis Principle | Static Volumetric Gas Adsorption (BET Method) |
| Surface Area Analysis | BET Surface Area Measurement |
| Pore Size Analysis | 3.5 Å to 5000 Å |
| Analysis Stations | Two Independent Analysis Stations |
| Expandability | Expandable to 4 or 6 Analysis Ports |
| Sample Ports | 2–6 Sample Ports |
| Pressure Transducers | 1 mmHg, 10 mmHg & 1000 mmHg High-Precision Transducers |
| Pressure Measurement Accuracy | Up to ±0.12% of Reading |
| Temperature Sensor | Platinum RTD |
| Temperature Accuracy | ±0.10 °C |
| Temperature Control | Ambient to 400 °C (Programmable) |
| Vacuum Transducer | Thermocouple Type (0.001–1 mmHg) |
| Gas Inlets | Six Automatically Controlled Gas Inlets |
| Dosing System | Fully Automated Smart Dosing |
| Degassing System | Independent Multi-Port Degassing Unit |
| Cryogen Control | Isothermal Jacket for Extended Operation |
| Unattended Operation | Up to 65 Hours |
| Vacuum Pump | Hybrid Turbo Vacuum Pump |
| Operating Voltage | 100 / 115 / 230 VAC (±10%) |
| Frequency | 50 / 60 Hz |
| Power Consumption | 800 VA (Excluding Vacuum Pump) |
| Operating Temperature | 10 °C to 30 °C |
| Storage Temperature | -10 °C to 55 °C |
| Humidity | Up to 90% RH (Non-Condensing) |
| Supported Gases | Nitrogen (N₂), Krypton & Other Inert Gases |
| Software Features | Real-Time Isotherm Analysis & Data Reduction |
| Report Generation | Customizable Reports with Graph Export |
| Data Export | Multiple Export Formats |
| Instrument Control | Real-Time Instrument Monitoring & Manual Control |
| Applications | Catalysts, MOFs, Nanomaterials, Pharmaceuticals, Battery Materials, Activated Carbon & Porous Materials |
